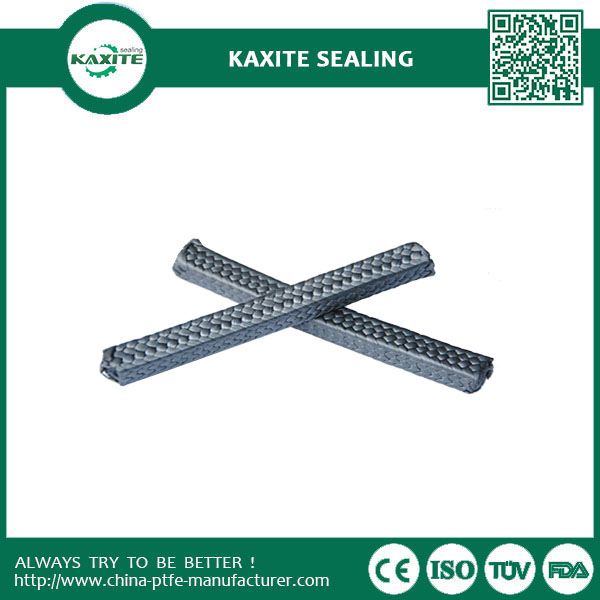

Graphite Soft Ptfe Packing Lower Frictional With Aramid Fiber In Corners
Product number:Graphite Soft Ptfe Packing Lower Frictional With Aramid Fiber In Corners
Quick Overview: Place of Origin: China Certification: ISO 9001,ROHS
Send Inquiry
PDF DownLoad
Product Description
PTFE graphite packing is made of corrosion-resistant tensile fiber cords that have been impregnated with a mixture of PTFE dispersion and fine graphite powder.
It is further impregnated with heat-resistant lubricant so as to be used more efficiently with revolving pumps in water plants, and conditions where water contains low-concentration particles.
Specifications:
1) Various specifications: 3 x 3 - 100 x 1000mm
2) Types: pure PTFE, PTFE, carbon fiber, graphite and copper wire graphite packing.
SERVICE LIMITS:
Pressure 20bar(Rotating) 100bar( Reciprocating) 100 bar(Static)
Shaft speed 10 m/s
Temperature up to 260°C
PH range 2~12
Density appr. 1.3g/cm3
PACKAGING:In coil of 5 or 10kgs, other weight on request. A box each coil, 20kgs per carton
Product Feature
-
Clean, non-contaminating and graphite free
-
Long maintenance free service life
-
Minimal shaft wear and leakage
-
Superior performance
-
Lower frictional factor
-
Excellent quanlity with competitive price
|
Packing |
Application range: All kinds of sealing material |
|||
|
Name |
Material |
Temperture °C |
Pressure Mpa |
PH value |
|
Carbonized Fiber Gland Packing |
Shrink-proof synthetic yarn with a special heatresistant, silicon-oil-free assitive. |
250 |
12 |
2-13 |
|
Flexible Graphite Gland Packing |
Braided packing made of flexible pure graphite with structural textile fibres. |
-200-850 |
25 |
0-14 |
|
PTFE Packing |
PTFE packing with lubricating assitive. |
250 |
15 |
0-14 |
|
PTFE Packing with Graphite |
PTFE filament yarn with permanently added PTFE graphite dispersion. The specially developed silicon-oil-free substance has excellent sliding characteristics and is incorporated in the packing by a special process |
250 |
10 |
2-13 |
|
Asbestos PTFE Packing |
High-quality asbestos yarn with permanently added liquid PTFE and lubricating silicon oil. |
250 |
10 |
2-13 |
|
Aramid(Kevlar) Braided Packing |
A high-quality, smooth, synthetic aramide endless fibres(Kevlar) with PTFE impregnation and lubricant additive. Extremely hard wearing. |
-100-260 |
30 |
2-13 |
|
Remie gland Packing |
Ramie fibre with light-coloured. Special PTFE impregnation or lubricating additive for prevention of product contamination. |
-50-140 |
20 |
2-13 |
|
GFO gland Packing |
PTFE filament yarn with permanently added QFO dispersion as lubrication additive |
-200-280 |
10 |
0-14 |
|
PTFE with Kevlar gland Packing |
A high-quality combination consistion of graphite-incorporated PTFE with sliding surface reinforcment made of aramide endless fibres(Kevlar) |
-100-250 |
15 |
0-14 |
|
Cotton gland Packing |
Pre-impregnated, twisted cotton yarns, intensively re-impregnated during braiding. |
-20-100 |
6 |
|
Technical data:
|
Technical data |
Rotating |
Reciprocating |
Valves |
|
Pressure |
4 Mpa |
20 Mpa |
25 Mpa |
|
Linear speed |
0~20 m/s rotary |
||
|
Temperature |
-100°Cto +280°C |
||
|
PH range |
2~14 |
||
