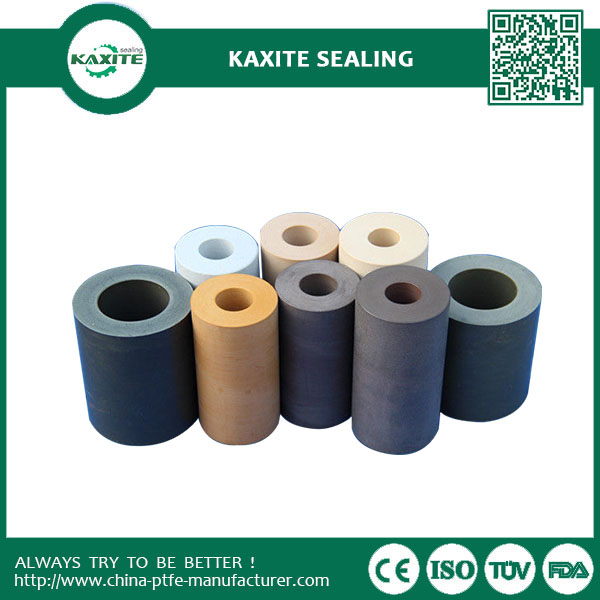

Custom Designed Molded Ptfe Teflon Tube With Carbon Graphite Materials
Discover Kaxite Sealing's custom designed molded PTFE Teflon tube with carbon graphite materials—engineered for exceptional durability and chemical resistance in demanding industrial applications. Its unique blend of PTFE and carbon graphite ensures superior performance, reducing friction and wear while maintaining flexibility. Ideal for manufacturers, engineers, and industries like automotive or aerospace, this tube solves leakage and degradation issues, offering reliable, long-lasting solutions. Stand out with precision customization and enhanced efficiency. Boost your operations with Kaxite Sealing's innovative products today!
PTFE tube adopt import high-quality PTFE resin (PTFE, commonly known as Teflon, plastics king), extrusion agglutination formation. The product has thermostablly, inoxidizability, wear-resisting, self-lubrication merit.Teflon tube can be widely used in science & technology field, such as in chemistry, instruments, mechanical industries, astronautic industry, vehicles, transformers, communications, etc.
PTFE Extruded tube the approximate weight per meter(specification sheet)
|
specification |
g/m |
specification |
g/m |
specification |
g/m |
The left data is caculated by 2.2k/cm Formula:g/m=1.73(Φ outside-inside) Φoutside:outside diameter Φinside:inside diameter(unit:mm)
There are other Push Pipe: 150 outside diameter And other size inside diameter |
||
|
Φ0.95Φ0.5 |
0.96 |
Φ3.4 Φ3 |
4.43 |
Φ11Φ8 |
98.5 |
|||
|
Φ1.0Φ0.6 |
1.1 |
Φ3.5Φ3 |
5.63 |
Φ11Φ7 |
124.2 |
|||
|
Φ1.1Φ0.7 |
1.25 |
Φ3.5Φ2.5 |
10.4 |
Φ11Φ5 |
165.6 |
|||
|
Φ1.2Φ0.8 |
1.38 |
Φ3.6Φ2.8 |
8.86 |
Φ12Φ10 |
76.1 |
|||
|
Φ1.3Φ0.9 |
1.52 |
Φ3.6Φ3 |
6.85 |
Φ12Φ8 |
138.4 |
|||
|
Φ1.4Φ1.0 |
1.66 |
Φ3.8Φ3 |
9.05 |
Φ13Φ10 |
119.1 |
|||
|
Φ1.5Φ1.1 |
2.49 |
Φ3.8Φ3.4 |
4.98 |
Φ13Φ9 |
152.0 |
|||
|
Φ1.6Φ1.2 |
1.94 |
Φ4Φ3 |
12.1 |
Φ14Φ12 |
90 |
|||
|
Φ1.6Φ1.0 |
2.7 |
Φ4Φ2 |
20.8 |
Φ14Φ10 |
166.0 |
|||
|
Φ1.8Φ1.4 |
2.21 |
Φ4.6Φ4 |
8.93 |
Φ15Φ13 |
96.8 |
|||
|
Φ1.9Φ1.5 |
2.35 |
Φ5Φ4 |
15.6 |
Φ15Φ12 |
140.0 |
|||
|
Φ2Φ1.6 |
2.49 |
Φ5Φ3 |
27.6 |
Φ15Φ11 |
179.8 |
|||
|
Φ2Φ1.5 |
3.2 |
Φ6Φ5 |
19.0 |
Φ16Φ14 |
103.9 |
|||
|
Φ2Φ1.4 |
3.53 |
Φ6Φ4 |
34.6 |
Φ16Φ12 |
193.8 |
|||
|
Φ2Φ1.0 |
5.18 |
Φ7Φ5 |
41.5 |
Φ17Φ15 |
110.5 |
|||
|
Φ2.2Φ1.8 |
2.77 |
Φ7Φ4 |
57.0 |
Φ17Φ14 |
160.7 |
|||
|
Φ2.4Φ2 |
3.32 |
Φ7Φ3 |
69.0 |
Φ18Φ15 |
171.0 |
|||
|
Φ2.4Φ1.8 |
4.36 |
Φ8Φ7 |
25.9 |
Φ18Φ14 |
221.5 |
|||
|
Φ2.5Φ2 |
3.89 |
Φ8Φ6 |
48.4 |
Φ18Φ16 |
117.5 |
|||
|
Φ2.6Φ2 |
4.76 |
Φ8Φ5 |
67.4 |
Φ19Φ15 |
235.2 |
|||
|
Φ2.8Φ2 |
6.63 |
Φ8Φ4 |
82.9 |
Φ19Φ14 |
285 |
|||
|
Φ2.8Φ2.4 |
3.66 |
Φ9Φ8 |
29.4 |
Φ20Φ16 |
249.0 |
|||
|
Φ2.9Φ2.5 |
3.22 |
Φ9Φ7 |
55.3 |
Φ22Φ18 |
276.6 |
|||
|
Φ3Φ2.6 |
3.88 |
Φ9Φ6 |
77.8 |
Φ23Φ20 |
223.2 |
|||
|
Φ3Φ2.5 |
4.75 |
Φ9Φ5 |
96.8 |
Φ28Φ24 |
360 |
|||
|
Φ3Φ2.4 |
5.61 |
Φ9Φ4 |
112.45 |
Φ29Φ25 |
373.7 |
|||
|
Φ3Φ2 |
8.65 |
Φ10Φ8 |
62.2 |
Φ30Φ24 |
561 |
|||
|
Φ3.2Φ2.8 |
4.15 |
Φ10Φ7 |
88.1 |
|
|
|||
|
Φ3.2Φ2.4 |
7.75 |
Φ10Φ6 |
110.6 |
|
|
|||
|
Φ3.4Φ2.8 |
6.44 |
Φ11Φ9 |
69.1 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
Specification
| Item | OD(mm) | Wall Thickness(mm) | Length(mm) |
| Paste Extruded Tube | 0.5~25 | 0.1~2.5 | According to customer's request |
| Plug Extruded Tube | 25~250 | 1.5~8 | According to customer's request |
| Molded Tube | 25~2000 | 5~500 | 100~300 |
Main properties
|
Properties |
Unit |
Result |
|
Apparent density |
g/cm3 |
2.10-2.20 |
|
Tensile strength (min) |
MPa |
20 |
|
Ultimate elongation (min) |
% |
200 |
|
Residual Lubricant Content (max) |
% |
0.5 |
|
Dialectric Strength (min) |
KV/mm |
10 |
Features
1) PTFE TUBE Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
2) PTFE TUBE Characteristics:Low
friction,Virtually no lubrication requirement,Light weight,Resistant to
corrosion and abrasion, Impact resistance,Stable chemical properties,Oil
resistance,High temperature resistance,Low temperature resistance,water
resistance and so on.
3) PTFE TUBE working temperature:-55~+260°C.
4) PTFE TUBE Electric insulation;good dielectric in mediums.
5) PTFE TUBE filled ptfe tube products(plastic tube pipe) Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin
6) PTFE TUBE Soft and formable,Outstanding chemical properties etc.
