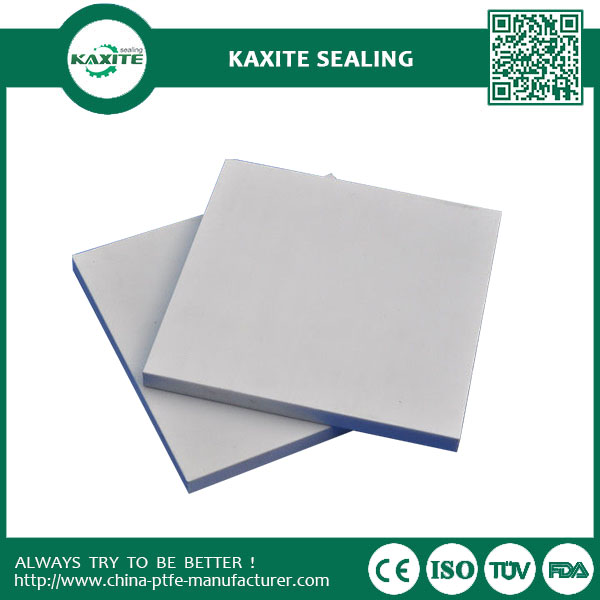

Durable Natural Turning Teflon Ptfe Sheet 1mm Thick 1500mm
Discover Kaxite Sealing's Durable Natural Turning Teflon PTFE Sheet, 1mm thick and 1500mm long—ideal for industrial and engineering applications. This premium sheet offers exceptional chemical resistance, low friction, and high durability, making it perfect for professionals in manufacturing, sealing, and machinery. Its natural Teflon material ensures reliable performance in demanding environments, solving wear and leakage issues. Stand out with Kaxite Sealing's trusted quality and precision engineering. Elevate your projects with this superior PTFE sheet today!
Teflon ptfe sheet is manufactured by technique of compacting, sintering, rotary cutting with PTFE granular resin. Teflon ptfe sheet has good dielectric performance and non-aging, best anti chemistry corrosion ability and wide applying intension range.
Teflon ptfe sheet is manufactured by molding process with PTFE regular resin and sintering.Teflon ptfe sheet is very suitable for seals,lining,diaphragm,spacer guide and bearing pad for bridge.
Technical data
|
ITEM |
Result |
Unit |
|
Material |
100% Virgin PTFE |
|
|
Apparent density |
2.10-2.30 |
g/ cm3 |
|
Tensile Strength |
22-28 |
Mpa |
|
Ultimate Elongation |
250-300 |
% |
|
Dielectric Strength |
40 |
KV/mm |
|
Tempature Resist |
-180-+260 |
oC |
|
PTFE Molded sheet Thickness |
1.5mm-----120mm |
|
|
Molded sheet Length * width |
Min Dimension=300x300mm, Max Dimension= 2000x2000mm Other sizes based on your requirements |
|
|
PTFE Skived sheet thickness |
0.1mm-----10.0mm |
|
|
PTFE Skived sheet width(Max) |
2700mm |
|
Main Features
2. Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3. Good mechanical property with no distortion and low friction coefficient.
4. Excellent insulation property.
5. Materials like carbon, graphite and glass fiber can be filled.
6. Virgin and recycled materials are available
Details
PTFE resin,filled with some filling stuff,can prolong the life of
products and strengthen the performance,eg:Graphite,Carbon ,Glass fiber
,bronze
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
Hot Tags: PTFE Sheet 1mm Thick, Natural Teflon Sheet 1500mm, Durable PTFE Sheet Wholesale
