Custom OEM and ODM Fep Tube manufacturing solutions from China supplier

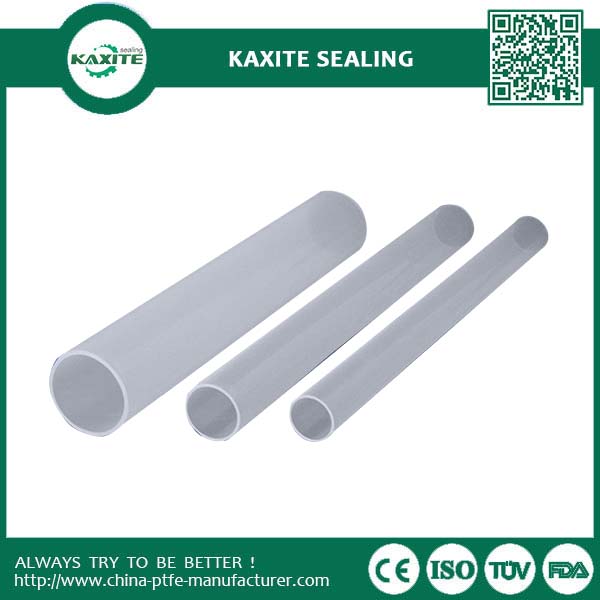

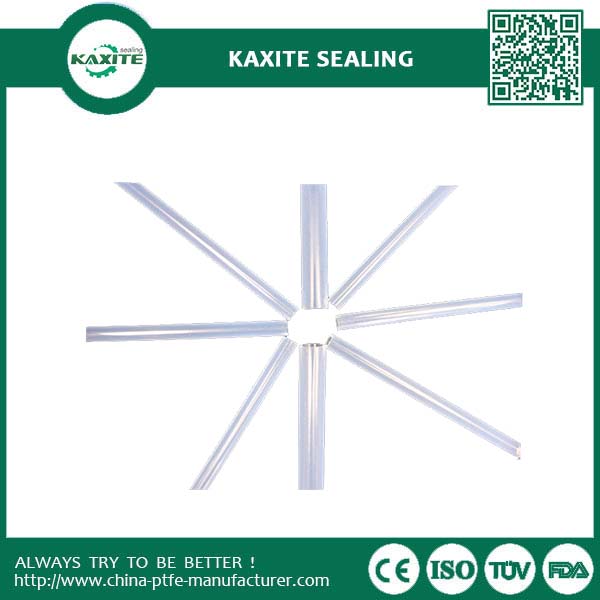

What is FEP Tubing?

FEP Tubing, or Fluorinated Ethylene Propylene tubing, is a flexible, transparent fluoropolymer tubing known for its exceptional chemical resistance and high-temperature performance. It is a preferred choice in industries where purity, clarity, and durability under harsh conditions are non-negotiable. Unlike many other plastics, FEP maintains its properties across a wide temperature range and offers near-zero moisture absorption, making it ideal for critical fluid transfer applications.

Key Advantages of FEP Tubing

• Superior Chemical Resistance: Inert to virtually all chemicals, including strong acids, bases, and solvents.
• Exceptional Clarity: High light transmission allows for easy visual flow monitoring.
• Wide Service Temperature Range: Performs consistently from -270°C to +205°C.
• Ultra-High Purity: Non-contaminating and non-leaching, perfect for sensitive applications like pharmaceuticals and semiconductor manufacturing.
• Excellent Dielectric Properties: A superb electrical insulator.
• Low Coefficient of Friction: Prevents material build-up and allows for easy cleaning.
• Non-Stick Surface: Resists adhesion, simplifying maintenance and sterilization.

Technical Specifications & Product Parameters

The FEP tubing from Kaxite is manufactured to the highest standards, ensuring consistency and reliability. Below are the detailed specifications for our standard product line.

Standard Size Chart

Applications of FEP Tubing

• Chemical Processing: Transfer of aggressive acids, solvents, and ultra-pure chemicals.
• Pharmaceutical & Biotech: Used in fermentation, chromatography, and drug delivery systems where sterility and purity are critical.
• Semiconductor Manufacturing: High-purity chemical delivery for wafer etching and cleaning processes.
• Analytical Instrumentation: Liners for peristaltic pumps, sample lines in HPLC, and gas chromatography.
• Food & Beverage: Suitable for sanitary fluid transfer due to its non-toxic and non-absorbent nature.
• Electrical Insulation: Protective sleeving for wires and components in demanding environments.

FEP Tubing: Frequently Asked Questions (FAQ)

General Questions

What is the primary difference between FEP, PFA, and PTFE tubing?

While all are fluoropolymers with excellent chemical resistance, key differences exist. FEP is more flexible and transparent than PTFE but has a slightly lower maximum continuous use temperature (205°C vs. 260°C). PFA shares similar clarity and temperature resistance with FEP but offers better stress crack resistance and is often used for more rigid applications. FEP provides an optimal balance of flexibility, clarity, and cost for many fluid handling tasks.

Can Kaxite FEP tubing be sterilized?

Yes, Kaxite FEP tubing is highly suitable for sterilization. It can withstand multiple cycles of autoclaving (steam sterilization at 121°C-135°C), gamma radiation, and ETO (ethylene oxide) sterilization without significant degradation of its mechanical or chemical properties. Its non-porous, inert surface prevents microbial adhesion and is easy to clean.

Is FEP tubing suitable for outdoor or UV-exposed applications?

FEP has excellent weathering resistance and is inherently UV stable. It will not become brittle or significantly degrade when exposed to sunlight for extended periods, making it suitable for certain outdoor applications. However, for very long-term, direct constant UV exposure, specific grades with stabilizers may be recommended.

Technical & Performance Questions

What is the pressure rating for FEP tubing?

The pressure rating depends on the tube diameter, wall thickness, and temperature. As a general rule, at room temperature (20°C), standard FEP tubing can handle working pressures in the range of 100 to 150 psi for smaller diameters. Always consult the Kaxite technical datasheet for pressure vs. temperature curves for your specific size. Never exceed the recommended pressure, especially at elevated temperatures.

How do I connect or fit FEP tubing?

FEP tubing can be connected using standard push-to-connect fittings, barbed fittings with hose clamps, or flanged ends. For a permanent, leak-free seal, thermal heat welding or butt welding is commonly used. It is crucial to use fittings made of compatible materials (e.g., PTFE, PFA, or polypropylene) to avoid galvanic corrosion or chemical incompatibility issues.

Does FEP tubing have any permeability issues?

FEP has extremely low gas and vapor permeability compared to many other polymers. This makes it an excellent choice for applications involving sensitive gases or where preventing atmospheric contamination of the fluid stream is essential. Its moisture absorption is virtually zero (<0.01%).

Handling & Sourcing Questions

Can Kaxite produce custom-colored or printed FEP tubing?

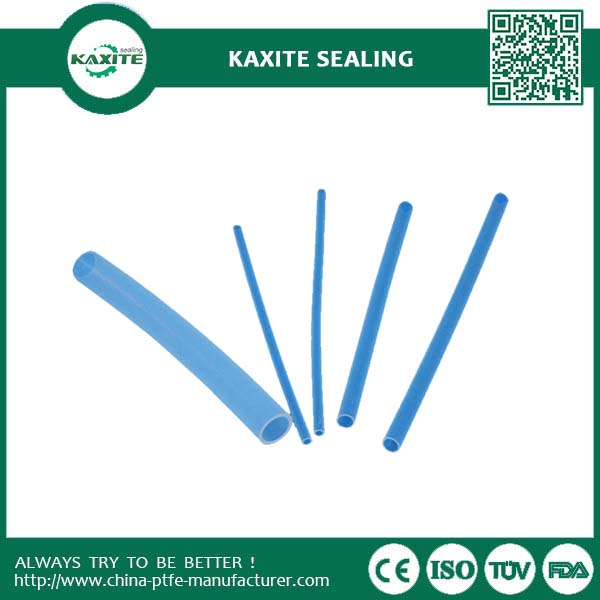

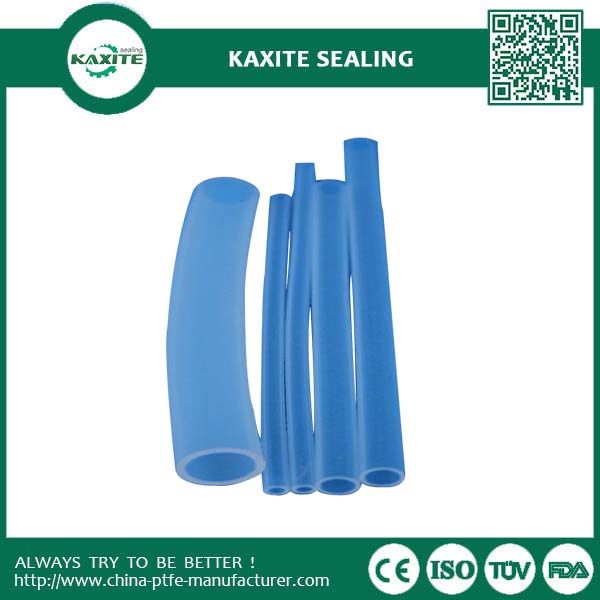

Absolutely. Kaxite specializes in providing tailored solutions. We can manufacture FEP tubing in various standard and custom colors for coding or identification purposes. We also offer printing services, such as continuous length marking or batch numbering, to meet traceability and quality control requirements in regulated industries.

What are the available packaging options?

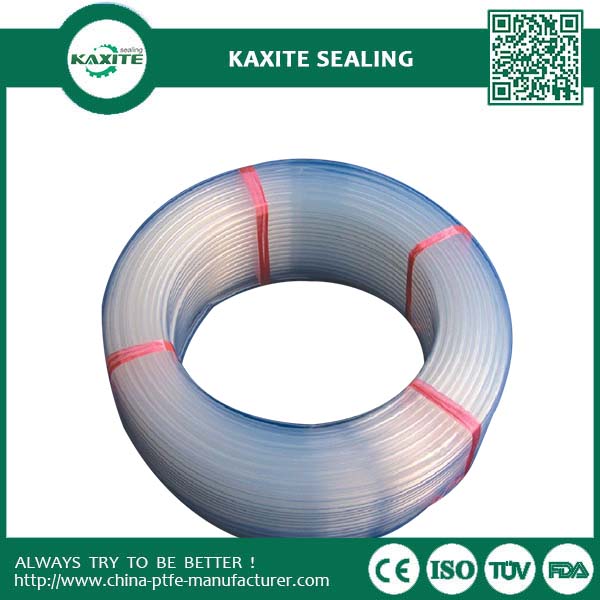

Kaxite FEP tubing is typically supplied on reels or coils to prevent kinking and damage. It is also available cut to specific lengths, bagged, and boxed for cleanliness. For ultra-high-purity applications, we offer clean-room packaging and can provide certification of analysis for each batch.

How should I store FEP tubing?

Store FEP tubing in its original packaging in a cool, dry, and dark environment away from direct sunlight, heat sources, and sharp objects. Avoid storing it under heavy weight or in a way that causes deformation. When stored properly, FEP tubing has an exceptionally long shelf life.
