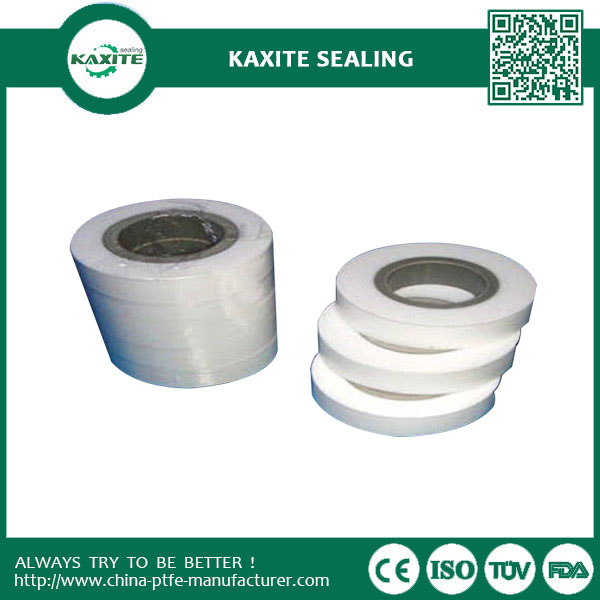

High Density PTFE Teflon Film Chemical Resistant Low Friction 30mm - 90mm Width
Experience the ultimate in chemical resistance and low friction with Kaxite Sealing's High Density PTFE Teflon Film. Designed for demanding industrial and hobbyist applications, this high-quality film, available in 30mm to 90mm widths, offers long-lasting performance and superior protection. Perfect for ensuring smooth operations and enhanced durability, it’s the ideal choice for professionals and DIY enthusiasts alike. Discover reliability redefined—choose Kaxite Sealing for your sealing and protective needs.
Ptfe Teflon Film is made of die-pressed PTFE blanks and has excellent dielectric
performance and weathering. It is a non-orientated film and may be pressed to
become orientated or semi-orientated film, i.e. suede pads, seals and lubricating
materials in various media. Ptfe Teflon Film can also become insulating pieces under various frequencies, a capacitor medium, conductor insulator and insulation for electricity meters.
performance and weathering. It is a non-orientated film and may be pressed to
become orientated or semi-orientated film, i.e. suede pads, seals and lubricating
materials in various media. Ptfe Teflon Film can also become insulating pieces under various frequencies, a capacitor medium, conductor insulator and insulation for electricity meters.
3.Specifications
|
Property |
Unit |
High-density |
Semi-density |
Common |
|
Tensile strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
average 1.8-2.2 |
- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
average 200 |
average 60 |
average 30 |
4.Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Surface protect material
4.Main properties
|
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length |
|
high-density |
0.015mm,0.030mm |
±0.003mm |
30-90mm |
±0.3mm |
≥50mm |
|
semi-density |
0.030mm,0.035mm |
±0.003mm |
60-90mm |
±0.3mm |
≥100mm |
|
common |
0.020mm,0.025mm |
±0.003mm |
60-90+mm |
±2.0mm |
≥50mm |
5.Filled Material
|
Item |
Properties |
Filled Powder |
|
1 |
improve the resistance of cold flow and the creep properties |
graphite,fiberglass |
|
2 |
improve thelubricity |
MoS2 |
|
3 |
improve the heat conduction performance |
bronze,carbon fiber |
|
4 |
improve the wear resistance |
fiberglass,polybenzoate |
|
5 |
improve the stability and reduce the deformation |
carbon fiber |
