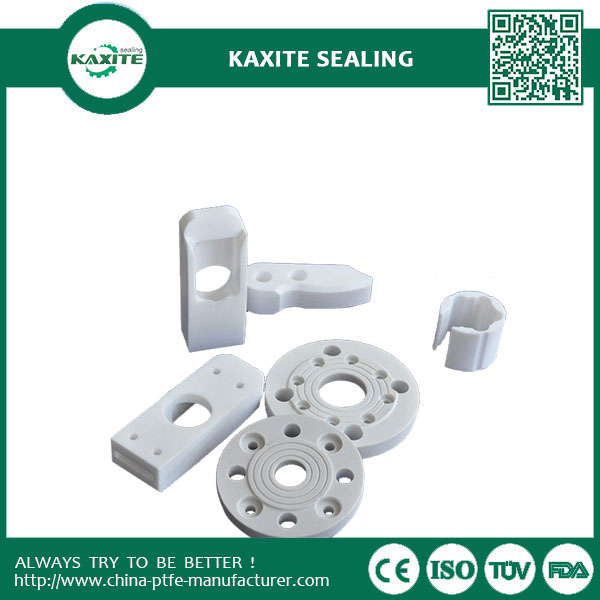

Precision Cnc Ptfe Machining Chemical Resistance And Temperature Resistance
Kaxite Sealing’s Precision CNC PTFE Machining delivers superior chemical and temperature resistance, ideal for demanding industrial applications. These expertly crafted components ensure reliability, durability, and peak performance, solving critical sealing challenges. Trust Kaxite Sealing for unmatched quality that drives efficiency and peace of mind.
We
supply special compounds filled ptfe products in order meet specific
applications requirments according to end use. ie. Glass fiber ,Carbon
fiber ,MoS2 ,Graphite , Bronze , Pigmen
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
| Product No. | Filled compound and content by weight | Tension strength MPa min | Ultimate strength% min | Compresive strength MPa min |
| 1 | 20% glass fiber | 10 | 120 | 16 |
| 2 | 25% glass fiber | 10 | 100 | 16 |
| 3 | 20% glass fiber graphile | 10 | 120 | 16 |
| 4 | 60% bronze | 10 | 80 | 20 |
| 5 | 15% carbon fiber | 11 | 130 | 16 |
| 6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
| 7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |
| Item Name | Precision Part | ||||
| Quality Assurance | ISO9001:2008 Certified | ||||
| Machining Equipment | Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc. | ||||
| Materials | Aluminum Alloy: | ||||
| 5052 /6061/ 6063 / 2017 / 7075 / etc. | |||||
| Brass Alloy: | |||||
| 3602 / 2604 / H59 / H62 / etc. | |||||
| Stainless Steel Alloy: | |||||
| 303 / 304 / 316 / 412 / etc. | |||||
| Steel Alloy: | |||||
| Carbon Steel / Die Steel / etc. | |||||
| Other Special Materials: | |||||
| Lucite / Nylon / Bakelite / etc. | |||||
| We handle many other type of materials. Please contact us if your required material is not listed above. | |||||
| Surface Treatment | Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting | ||||
| Inspection | Our Mitutoyo Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ | ||||
| File Formats | Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF etc. | ||||
Specification
1.the best chemical resistance properties
2. long-term using of temperature
3.reach 260 degrees
4.have very good self-lubricating
5.electrical flame retardant
6.commonly used in the food machinery, textile machinery, engineering machinery
Hot Tags: Precision CNC PTFE machining, Chemical-resistant PTFE components, High-temperature PTFE parts
