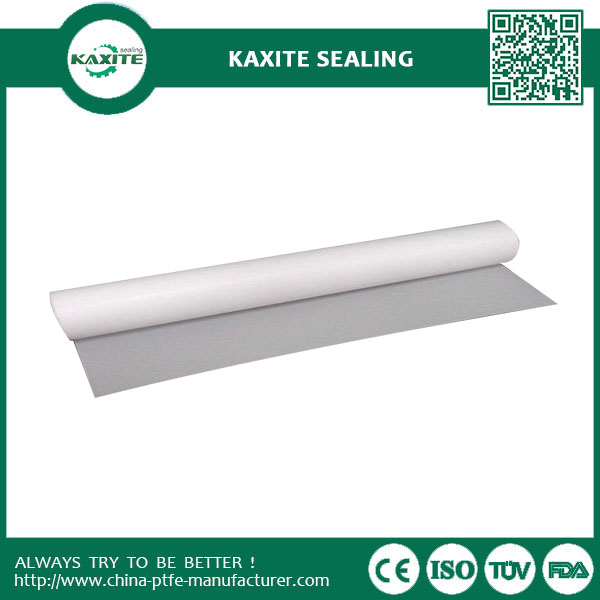

Skived PTFE Teflon Film High Insulation High Dielectric Heat Resistance
Discover Kaxite Sealing's Skived PTFE Teflon Film, engineered for unmatched performance with high insulation, high dielectric strength, and exceptional heat resistance. Ideal for industries like electronics, aerospace, and automotive, this premium film ensures reliable protection and durability in demanding conditions. Choose Kaxite Sealing for superior quality and innovative solutions that enhance efficiency and safety.
Ptfe Teflon Film is made of die-pressed PTFE blanks and has excellent dielectric
performance and weathering. It is a non-orientated film and may be pressed to
become orientated or semi-orientated film, i.e. suede pads, seals and lubricating
materials in various media. Ptfe Teflon Film can also become insulating
pieces under various frequencies, a capacitor medium, conductor
insulator and insulation for electricity meters.
3.Specifications
|
Property |
Unit |
High-density |
Semi-density |
Common |
|
Tensile strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
average 1.8-2.2 |
- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
average 200 |
average 60 |
average 30 |
4.Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Surface protect material
4.Main properties
|
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length |
|
high-density |
0.015mm,0.030mm |
±0.003mm |
30-90mm |
±0.3mm |
≥50mm |
|
semi-density |
0.030mm,0.035mm |
±0.003mm |
60-90mm |
±0.3mm |
≥100mm |
|
common |
0.020mm,0.025mm |
±0.003mm |
60-90+mm |
±2.0mm |
≥50mm |
5.Filled Material
|
Item |
Properties |
Filled Powder |
|
1 |
improve the resistance of cold flow and the creep properties |
graphite,fiberglass |
|
2 |
improve thelubricity |
MoS2 |
|
3 |
improve the heat conduction performance |
bronze,carbon fiber |
|
4 |
improve the wear resistance |
fiberglass,polybenzoate |
|
5 |
improve the stability and reduce the deformation |
carbon fiber |
