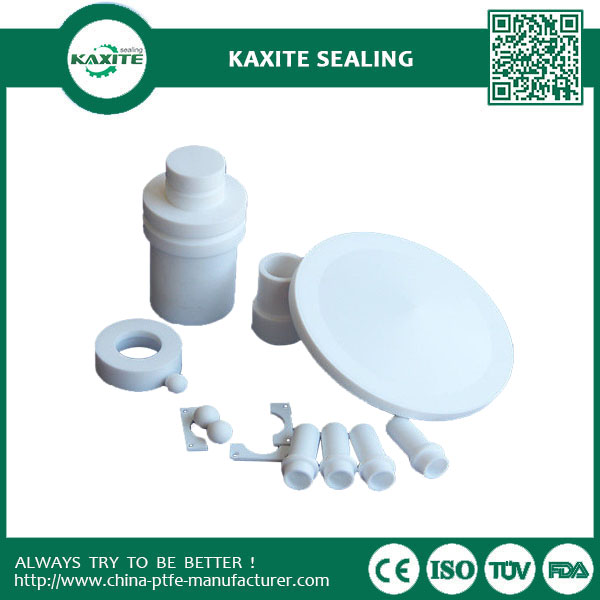

Teflon Ptfe Machining Cnc Turning Parts  Dielectric And Non-stick

Teflon Ptfe Machining Cnc Turning Parts Dielectric And Non-stick

Product number:Teflon Ptfe Machining Cnc Turning Parts Dielectric And Non-stick

Quick Overview: Place of Origin: China Certification: ISO 9001,ROHS

Send Inquiry

PDF DownLoad

Product Description

PTFE special articles machining main Features:

PTFE has excellent all-round properties performing well at both high and low temperatures, being corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Function: For various types of electronic, electrical, automation equipment, industrial equipment components



Quick detail


1. 4-Axis CNC Machining Process
2. Tolerance: +/-0.02mm
3. OEM service


We supply special compounds filled ptfe products in order meet specific applications requirments according to end use. ie. Glass fiber ,Carbon fiber ,MoS2 ,Graphite , Bronze , Pigmen


Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties


Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity


Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties


Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications


Product   No. Filled  compound  and content  by weight Tension  strength MPa  min Ultimate  strength%  min Compresive  strength MPa  min
1 20%   glass   fiber 10 120 16
2 25%   glass   fiber 10 100 16
3 20%   glass   fiber      graphile 10 120 16
4 60%   bronze 10 80 20
5 15%   carbon   fiber 11 130 16
6 24%   bronze  12%glass  fiber   6%  graphite 9 100 16
7 15%glass  fiber   105polyikmide   5% graphite 10 120 16.7


Item Name Precision Part
Quality Assurance ISO9001:2008 Certified
Machining Equipment Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials  Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / etc.
Other Special Materials:
Lucite / Nylon / Bakelite / etc.
We handle many other type of materials. Please contact us if your required material is not listed above.
Surface Treatment  Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting
Inspection Our Mitutoyo Tool Microscope can measure up to  300mmX x 175mmY x 220mmZ
File Formats Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF etc.



Machining parts



Aluminum, Aluminum alloy, Zinc,Zinc alloy ,Stainless steel, Mild steel,

Alloy steel, Cooper, brass, etc.





 · Medical parts

· Machine parts

· Aerospace machinery parts

· Ships equipment parts

· Electrical parts

· Furniture parts

· Kitchen tools

· Telecommunications


Machining devices


 1) 1 Fadel CNC Vertical Machine Center, with tool changers

 2) 3 CNC Robodrills, Fanuc Controls, with pallet changers

 3) 4 CNC Robodrills, Fanuc Controls

 4) 1 Okoma CNC Lathe

 5) 5 Dedicated Machine Centers, Amplifier Housings

 Multiple drill/tap/bore operations

 6) 2 Dedicated Drill & Tap Machine Centers, ADC Amplifier Housings

 7) 1 Dedicated Tap Center, Interdiction Housing

 8) 3 Dedicated Tap Centers, Fiber Housing

 9) 4 Natco MultiSpindle Drill/Tap Machines

10) 24 Spindle Capacity

11) 3 Bridgeport Milling Machines


Production procedure

1.Designing drawing

2.Opening mould

3.Die casting ( Aluminium alloy or Zinc alloy )

4.Precision machining

5.Surface treatment : burring ,polishing,electroplating .

plated chrome ,silver ,golden .,sandblasting,painting,

anodizing, powder coating etc.

6.Inspection and packing






1.the best chemical resistance properties

2. long-term using of temperature

3.reach 260 degrees

4.have very good self-lubricating

5.electrical flame retardant

6.commonly used in the food machinery, textile machinery, engineering machinery
