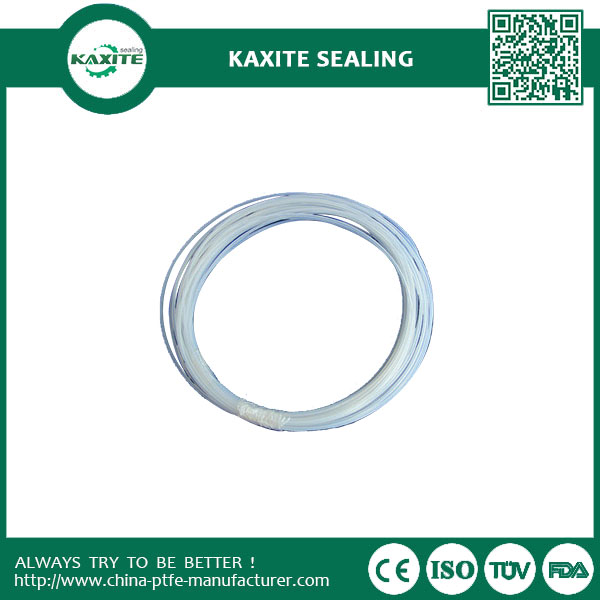

White Ptfe Tube Extruded 1m 2m Length Anti Aging Teflon Tube
Product number:White Ptfe Tube Extruded 1m 2m Length Anti Aging Teflon Tube
Quick Overview: Place of Origin: China (Mainland) Certification: SGS,IOS9001,ISO14001,FDA
Send Inquiry
PDF DownLoad
Product Description
PTFE tube adopt import high-quality PTFE resin (PTFE, commonly known as Teflon, plastics king), extrusion agglutination formation. The product has thermostablly, inoxidizability, wear-resisting, self-lubrication merit.Teflon tube can be widely used in science & technology field, such as in chemistry, instruments, mechanical industries, astronautic industry, vehicles, transformers, communications, etc.
PTFE Extruded tube the approximate weight per meter(specification sheet)
|
specification |
g/m |
specification |
g/m |
specification |
g/m |
The left data is caculated by 2.2k/cm Formula:g/m=1.73(Φ outside-inside) Φoutside:outside diameter Φinside:inside diameter(unit:mm)
There are other Push Pipe: 150 outside diameter And other size inside diameter |
||
|
Φ0.95Φ0.5 |
0.96 |
Φ3.4 Φ3 |
4.43 |
Φ11Φ8 |
98.5 |
|||
|
Φ1.0Φ0.6 |
1.1 |
Φ3.5Φ3 |
5.63 |
Φ11Φ7 |
124.2 |
|||
|
Φ1.1Φ0.7 |
1.25 |
Φ3.5Φ2.5 |
10.4 |
Φ11Φ5 |
165.6 |
|||
|
Φ1.2Φ0.8 |
1.38 |
Φ3.6Φ2.8 |
8.86 |
Φ12Φ10 |
76.1 |
|||
|
Φ1.3Φ0.9 |
1.52 |
Φ3.6Φ3 |
6.85 |
Φ12Φ8 |
138.4 |
|||
|
Φ1.4Φ1.0 |
1.66 |
Φ3.8Φ3 |
9.05 |
Φ13Φ10 |
119.1 |
|||
|
Φ1.5Φ1.1 |
2.49 |
Φ3.8Φ3.4 |
4.98 |
Φ13Φ9 |
152.0 |
|||
|
Φ1.6Φ1.2 |
1.94 |
Φ4Φ3 |
12.1 |
Φ14Φ12 |
90 |
|||
|
Φ1.6Φ1.0 |
2.7 |
Φ4Φ2 |
20.8 |
Φ14Φ10 |
166.0 |
|||
|
Φ1.8Φ1.4 |
2.21 |
Φ4.6Φ4 |
8.93 |
Φ15Φ13 |
96.8 |
|||
|
Φ1.9Φ1.5 |
2.35 |
Φ5Φ4 |
15.6 |
Φ15Φ12 |
140.0 |
|||
|
Φ2Φ1.6 |
2.49 |
Φ5Φ3 |
27.6 |
Φ15Φ11 |
179.8 |
|||
|
Φ2Φ1.5 |
3.2 |
Φ6Φ5 |
19.0 |
Φ16Φ14 |
103.9 |
|||
|
Φ2Φ1.4 |
3.53 |
Φ6Φ4 |
34.6 |
Φ16Φ12 |
193.8 |
|||
|
Φ2Φ1.0 |
5.18 |
Φ7Φ5 |
41.5 |
Φ17Φ15 |
110.5 |
|||
|
Φ2.2Φ1.8 |
2.77 |
Φ7Φ4 |
57.0 |
Φ17Φ14 |
160.7 |
|||
|
Φ2.4Φ2 |
3.32 |
Φ7Φ3 |
69.0 |
Φ18Φ15 |
171.0 |
|||
|
Φ2.4Φ1.8 |
4.36 |
Φ8Φ7 |
25.9 |
Φ18Φ14 |
221.5 |
|||
|
Φ2.5Φ2 |
3.89 |
Φ8Φ6 |
48.4 |
Φ18Φ16 |
117.5 |
|||
|
Φ2.6Φ2 |
4.76 |
Φ8Φ5 |
67.4 |
Φ19Φ15 |
235.2 |
|||
|
Φ2.8Φ2 |
6.63 |
Φ8Φ4 |
82.9 |
Φ19Φ14 |
285 |
|||
|
Φ2.8Φ2.4 |
3.66 |
Φ9Φ8 |
29.4 |
Φ20Φ16 |
249.0 |
|||
|
Φ2.9Φ2.5 |
3.22 |
Φ9Φ7 |
55.3 |
Φ22Φ18 |
276.6 |
|||
|
Φ3Φ2.6 |
3.88 |
Φ9Φ6 |
77.8 |
Φ23Φ20 |
223.2 |
|||
|
Φ3Φ2.5 |
4.75 |
Φ9Φ5 |
96.8 |
Φ28Φ24 |
360 |
|||
|
Φ3Φ2.4 |
5.61 |
Φ9Φ4 |
112.45 |
Φ29Φ25 |
373.7 |
|||
|
Φ3Φ2 |
8.65 |
Φ10Φ8 |
62.2 |
Φ30Φ24 |
561 |
|||
|
Φ3.2Φ2.8 |
4.15 |
Φ10Φ7 |
88.1 |
|
|
|||
|
Φ3.2Φ2.4 |
7.75 |
Φ10Φ6 |
110.6 |
|
|
|||
|
Φ3.4Φ2.8 |
6.44 |
Φ11Φ9 |
69.1 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
Specification
| Item | OD(mm) | Wall Thickness(mm) | Length(mm) |
| Paste Extruded Tube | 0.5~25 | 0.1~2.5 | According to customer's request |
| Plug Extruded Tube | 25~250 | 1.5~8 | According to customer's request |
| Molded Tube | 25~2000 | 5~500 | 100~300 |
Main properties
|
Properties |
Unit |
Result |
|
Apparent density |
g/cm3 |
2.10-2.20 |
|
Tensile strength (min) |
MPa |
20 |
|
Ultimate elongation (min) |
% |
200 |
|
Residual Lubricant Content (max) |
% |
0.5 |
|
Dialectric Strength (min) |
KV/mm |
10 |
Features
1) PTFE TUBE Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
2) PTFE TUBE Characteristics:Low
friction,Virtually no lubrication requirement,Light weight,Resistant to
corrosion and abrasion, Impact resistance,Stable chemical properties,Oil
resistance,High temperature resistance,Low temperature resistance,water
resistance and so on.
3) PTFE TUBE working temperature:-55~+260°C.
4) PTFE TUBE Electric insulation;good dielectric in mediums.
5) PTFE TUBE filled ptfe tube products(plastic tube pipe) Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin
6) PTFE TUBE Soft and formable,Outstanding chemical properties etc.
