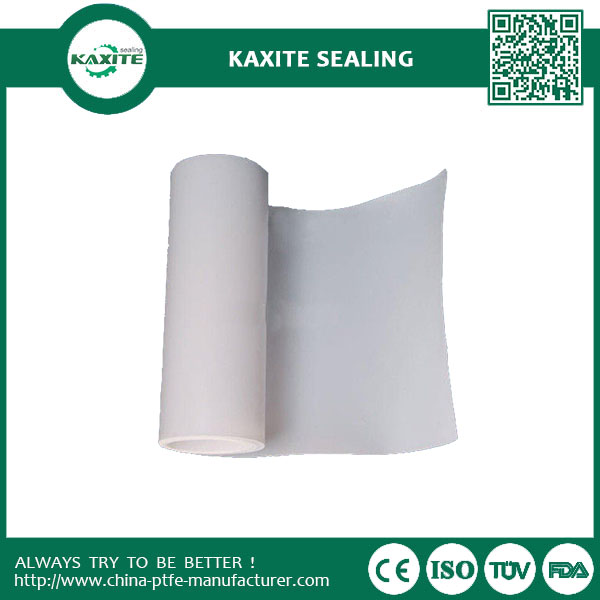

Dimpled Teflon Ptfe Sheet 1200mm For Bridge Construction Insulation Electronic Grade
Kaxite Sealing presents the Dimpled Teflon PTFE Sheet, a 1200mm solution perfect for bridge construction insulation and electronic grade applications. This high-quality sheet offers superior durability, excellent chemical resistance, and efficient insulation properties, making it ideal for engineers, contractors, and manufacturers. Its unique dimpled design enhances performance, ensuring reliable protection and peace of mind in demanding environments. Stand out with this innovative product that tackles insulation challenges effectively—choose Kaxite Sealing for unmatched quality and trust in your projects.
Teflon ptfe skived sheet is manufactured by technique of compacting, sintering, rotary cutting
with PTFE granular resin. Teflon ptfe moulded sheet is manufactured by molding process with PTFE regular resin and sintering.Teflon ptfe sheet is very suitable for seals,lining,diaphragm,spacer guide and bearing pad for bridge.
Teflon ptfe sheet has good dielectric performance and non-aging, best anti chemistry corrosion
ability and wide applying intension range.
Main Feature:
1. Heat resistance property---It is able to wok stably between -180°C to +260°C.
2. Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3. Good mechanical property with no distortion and low friction coefficient.
4. Excellent insulation property.
5. Materials like carbon, graphite and glass fiber can be filled.
6. Virgin and recycled materials are available
Technical data:
|
ITEM |
Result |
Unit |
|
Material |
100% Virgin PTFE |
|
|
Apparent density |
2.10-2.30 |
g/ cm3 |
|
Tensile Strength |
22-28 |
Mpa |
|
Ultimate Elongation |
250-300 |
% |
|
Tempature Resist |
-180-+260 |
oC |
|
PTFE Molded sheet Thickness |
2.0mm-----100mm |
|
|
Molded sheet Length * width |
Min Dimension=300x300mm, Max Dimension= 2000x2000mm Other sizes based on your requirements |
|
|
PTFE Skived sheet thickness |
0.1mm-----8.0mm |
|
|
PTFE Skived sheet width(Max) |
2700mm |
|
Filler:
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
Hot Tags: Dimpled Teflon PTFE Sheet, 1200mm Bridge Construction Insulation, Electronic Grade PTFE Sheet
