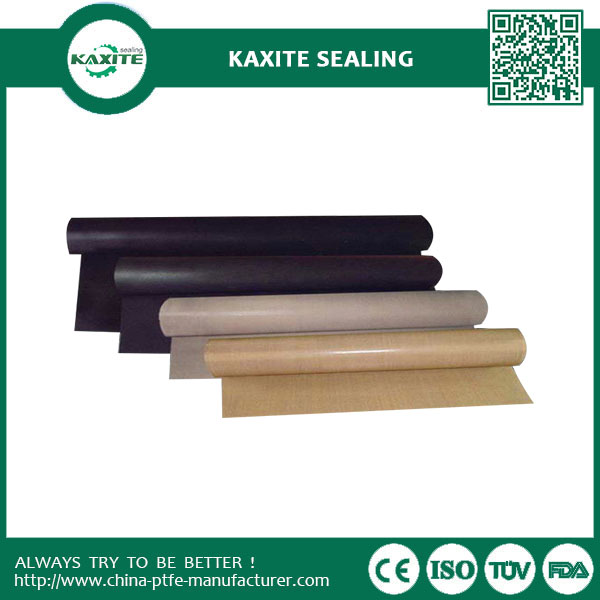

Moisture Proof High insulation Ptfe Teflon Film 0.04mm Electrical Insulation
Kaxite Sealing presents its Moisture Proof High insulation Ptfe Teflon Film 0.04MM Electrical Insulation, a premium-grade solution designed for superior electrical protection. This ultra-thin, durable film ensures reliable moisture resistance and high insulation, ideal for engineers and manufacturers in demanding applications. Experience enhanced safety and peak performance with our top-tier PTFE technology, setting a new standard in quality and durability.
Ptfe
Teflon Film is made of die-pressed PTFE blanks and has excellent
dielectric performance and weathering. It is a non-orientated film and
may be pressed to
become
orientated or semi-orientated film, i.e. suede pads, seals and
lubricating materials in various media. Ptfe Teflon Film can also become
insulating pieces under various frequencies, a capacitor medium,
conductor insulator and insulation for electricity meters.
3.Specifications
|
Property |
Unit |
High-density |
Semi-density |
Common |
|
Tensile strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
average 1.8-2.2 |
- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
average 200 |
average 60 |
average 30 |
4.Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Surface protect material
4.Main properties
|
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length |
|
high-density |
0.015mm,0.030mm |
±0.003mm |
30-90mm |
±0.3mm |
≥50mm |
|
semi-density |
0.030mm,0.035mm |
±0.003mm |
60-90mm |
±0.3mm |
≥100mm |
|
common |
0.020mm,0.025mm |
±0.003mm |
60-90+mm |
±2.0mm |
≥50mm |
5.Filled Material
|
Item |
Properties |
Filled Powder |
|
1 |
improve the resistance of cold flow and the creep properties |
graphite,fiberglass |
|
2 |
improve thelubricity |
MoS2 |
|
3 |
improve the heat conduction performance |
bronze,carbon fiber |
|
4 |
improve the wear resistance |
fiberglass,polybenzoate |
|
5 |
improve the stability and reduce the deformation |
carbon fiber |
