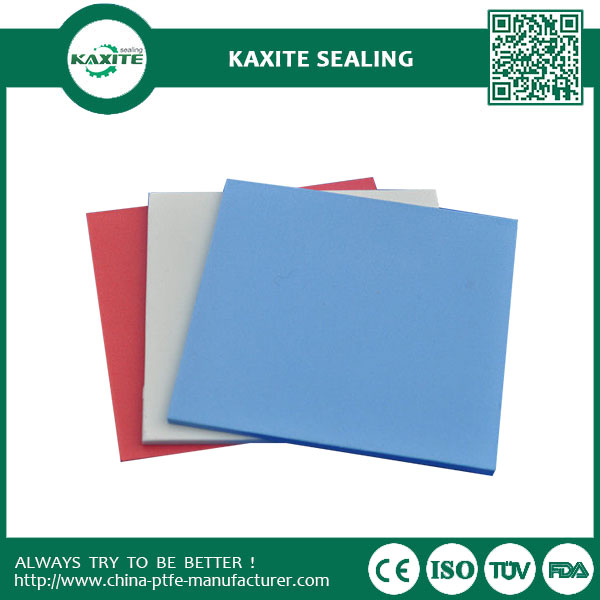

Molded Teflon Ptfe Sheet Low Friction Virgin PTFE 1000mm
Experience unparalleled performance with Kaxite Sealing's Molded Teflon PTFE Sheet, crafted from 100% virgin PTFE for low friction up to 1000mm. Perfect for industrial use, it ensures durability and smooth operation, ideal for engineers and manufacturers. Its high-quality material solves wear issues, offering superior resistance compared to standard sheets. Trust Kaxite Sealing for reliable sealing solutions.
Teflon ptfe skived sheet is manufactured by technique of compacting, sintering, rotary cutting
with PTFE granular resin. Teflon ptfe moulded sheet is manufactured by molding process with PTFE regular resin and sintering.Teflon ptfe sheet is very suitable for seals,lining,diaphragm,spacer guide and bearing pad for bridge.
Teflon ptfe sheet has good dielectric performance and non-aging, best anti chemistry corrosion
ability and wide applying intension range.
Main Feature:
1. Heat resistance property---It is able to wok stably between -180°C to +260°C.
2. Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3. Good mechanical property with no distortion and low friction coefficient.
4. Excellent insulation property.
5. Materials like carbon, graphite and glass fiber can be filled.
6. Virgin and recycled materials are available
Technical data:
|
ITEM |
Result |
Unit |
|
Material |
100% Virgin PTFE |
|
|
Apparent density |
2.10-2.30 |
g/ cm3 |
|
Tensile Strength |
22-28 |
Mpa |
|
Ultimate Elongation |
250-300 |
% |
|
Tempature Resist |
-180-+260 |
oC |
|
PTFE Molded sheet Thickness |
2.0mm-----100mm |
|
|
Molded sheet Length * width |
Min Dimension=300x300mm, Max Dimension= 2000x2000mm Other sizes based on your requirements |
|
|
PTFE Skived sheet thickness |
0.1mm-----8.0mm |
|
|
PTFE Skived sheet width(Max) |
2700mm |
|
Filler:
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
