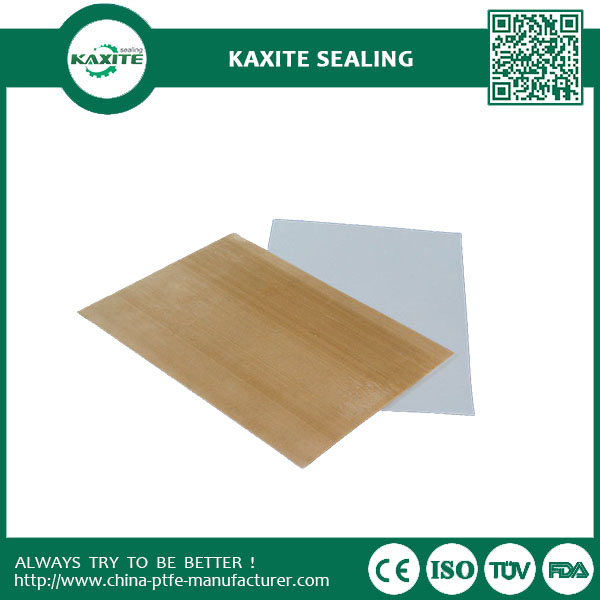

Virgin Molded Teflon Ptfe Sheet 3 mm Glass Fiber Filled
Elevate your industry projects with Kaxite Sealing's Virgin Molded Teflon PTFE Sheet 3 mm Glass Fiber Filled, crafted for unmatched durability and chemical resistance. This premium sheet offers superior thermal stability and low friction, making it ideal for industrial seals, gaskets, and high-performance applications. Solve your reliability challenges and enhance efficiency with a product engineered for lasting quality, trusted by professionals worldwide. Choose Kaxite Sealing for innovation you can depend on.
Teflon ptfe skived sheet is manufactured by technique of compacting, sintering, rotary cutting
with PTFE granular resin. Teflon ptfe moulded sheet is manufactured by molding process with PTFE regular resin and sintering.Teflon ptfe sheet is very suitable for seals,lining,diaphragm,spacer guide and bearing pad for bridge.
Teflon ptfe sheet has good dielectric performance and non-aging, best anti chemistry corrosion
ability and wide applying intension range.
Main Feature:
1. Heat resistance property---It is able to wok stably between -180°C to +260°C.
2. Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3. Good mechanical property with no distortion and low friction coefficient.
4. Excellent insulation property.
5. Materials like carbon, graphite and glass fiber can be filled.
6. Virgin and recycled materials are available
Technical data:
|
ITEM |
Result |
Unit |
|
Material |
100% Virgin PTFE |
|
|
Apparent density |
2.10-2.30 |
g/ cm3 |
|
Tensile Strength |
22-28 |
Mpa |
|
Ultimate Elongation |
250-300 |
% |
|
Tempature Resist |
-180-+260 |
oC |
|
PTFE Molded sheet Thickness |
2.0mm-----100mm |
|
|
Molded sheet Length * width |
Min Dimension=300x300mm, Max Dimension= 2000x2000mm Other sizes based on your requirements |
|
|
PTFE Skived sheet thickness |
0.1mm-----8.0mm |
|
|
PTFE Skived sheet width(Max) |
2700mm |
|
Filler:
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
